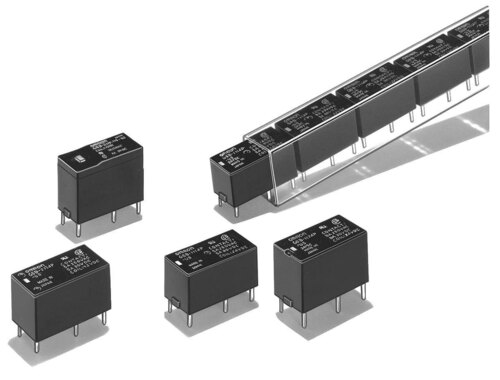

G6B-1174P-FD-US DC24 Omron PCB Relay

460 INR/Piece

Get a Price/Quote

Product Details:

Mechanical Life 20,000,000 operations min.
Power Consumption 360 mW
Protect Feature Sealed
Contact Material AgNi (Silver Nickel)
Working Temperature -40C to +70C
Dielectiric Strength 1000 VAC, 50/60 Hz for 1 min between coil and contacts
Contact Resistance 100 m max. (at 1A 6VDC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

G6B-1174P-FD-US DC24 Omron PCB Relay Price And Quantity

Price 460 INR/Piece
Minimum Order Quantity 50 Piece

G6B-1174P-FD-US DC24 Omron PCB Relay Product Specifications

Coil Voltage 24 VDC
Coil Power Approx. 360 mW
Terminal Type PCB Terminal
Theory Electromagnetic Relay
Power Consumption 360 mW
Contact Resistance 100 m max. (at 1A 6VDC)
Size Standard Miniature
Rated Voltage 12 Volt (V)
Mechanical Life 20,000,000 operations min.
Weight Approx. 10 g
Dielectiric Strength 1000 VAC, 50/60 Hz for 1 min between coil and contacts
Usage Industrial
Warranty 6 Month
Operate Time 10 ms max.
Product Type G6B-1174P-FD-US DC24 Omron PCB Relay
Dimension (L*W*H) 20.2 mm 10.2 mm 11 mm
Contact Form SPDT (1 Form C)
Color Black
Working Temperature -40C to +70C
Ambient Temperature -40C to +70C
Contact Material AgNi (Silver Nickel)
Insulation Resistance 1000 M min. (at 500 VDC)
Supply Terminal Through Hole
Protect Feature Sealed
Contact Load 5A at 250VAC / 30VDC

G6B-1174P-FD-US DC24 Omron PCB Relay Trade Information

Payment Terms Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 500 Piece Per Week
Delivery Time 1 Days
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Main Export Market(s) Asia
Main Domestic Market All India
Certifications Yes

Product Description

PCB Power Relay,Miniature Single-side stable, SPST-NO,Fully sealed,Pin material AgSnIn contact,Straight PCB terminals,1-pole,Mounted directly to PCB, Input Supply-DC24

Compact Power for Industrial Use

The G6B-1174P-FD-US DC24 Omron relay delivers high switching performance within a standard miniature size (20.2 10.2 11 mm). Its lightweight design (approx. 10g) and PCB mounting make it ideal for dense circuit layouts, supporting modern industrial automation needs without compromising on reliability or durability.

Robust and Reliable Operation

With resistance up to 1000 m/s2 (100G) shock and 1.5 mm vibration amplitude between 10-55 Hz, this relay is built for tough environments. Superior insulation and sealed construction ensure consistent performance, while RoHS, UL, and CE certifications underline its compliance and safety for global use.

Efficient Electrical Performance

Operating on a 24VDC coil with low power consumption (approx. 360 mW), the relay maintains fast response capabilities (10 ms operate/release time) and robust contact materials (AgNi) for long-term operation. It supports both AC and DC loads, accommodating diverse application requirements in industrial settings.

FAQ's of G6B-1174P-FD-US DC24 Omron PCB Relay:

Q: How is the G6B-1174P-FD-US DC24 Omron relay mounted onto a circuit board?

A: This relay is designed for PCB mount installation, using its 5 through-hole terminals for secure attachment to printed circuit boards. Ensure proper orientation and solder points during assembly for optimal performance.

Q: What environmental conditions can the relay safely operate in?

A: The G6B-1174P-FD-US DC24 can function in ambient and working temperatures from -40C to +70C and can be stored safely between -40C and +85C. Its high shock (100G) and vibration resistance support use in industrial environments.

Q: Where is the G6B-1174P-FD-US DC24 Omron relay commonly used?

A: This relay is ideal for industrial applications requiring reliable switching, including automation systems, control panels, and machinery. Its sealed design makes it suitable for environments exposed to dust or moisture.

Q: What are the main electrical specifications and benefits of this relay?

A: It operates at 24 VDC coil voltage, handles loads up to 5A at 250VAC/30VDC, and consumes just 360 mW of power. The relay's SPDT (1 Form C) contacts and low contact resistance provide efficient switching and extended service life.

Q: How does the sealed construction of the relay benefit users?

A: The sealed enclosure protects internal components from dust and moisture, enhancing durability and reducing failure rates in harsh environments. This feature supports long-term stability and reduces maintenance needs.

Q: What is the process for replacing or installing this relay?

A: Simply align the relay pins with your PCB layout and solder each pin securely. Should replacement be necessary, desolder the old relay and clean the board area before installing the new unit. Follow standard ESD precautions throughout the process.

Q: Is the relay certified for international standards?

A: Yes, the G6B-1174P-FD-US DC24 meets RoHS, UL, and CE standards, ensuring compliance with global safety and environmental regulations for electronic components.
