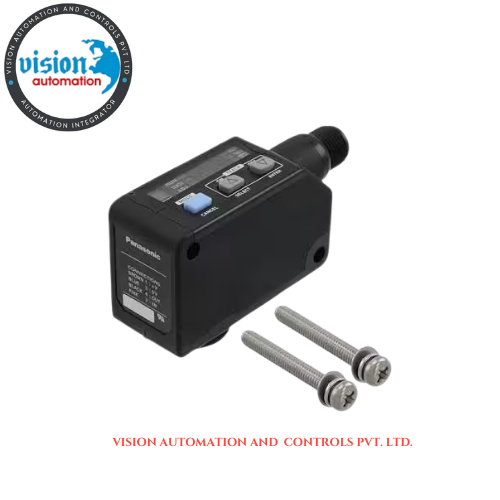

PX-24ES Panasonic photoelectric sensor

Product Description

Product Description: The Panasonic PX-24ES is a compact, high-performance photoelectric sensor designed for precision object detection in industrial environments. With its through-beam sensing method, it provides reliable and stable detection over long distances, even in dusty or challenging lighting conditions. Housed in a durable enclosure with an IP67 rating, the PX-24ES is ideal for automation systems, manufacturing lines, and safety monitoring applications. Its quick-response time and easy installation make it a go-to solution for engineers seeking efficiency and accuracy.Example Use Case: Application: Conveyor Belt Object Detection In a packaging facility, the PX-24ES is installed on either side of a conveyor belt to detect the presence of boxes as they pass through. The emitter and receiver are aligned across the belt; when a box interrupts the beam, the sensor triggers a signal to the PLC (Programmable Logic Controller) to activate downstream processes like labeling or sorting. Its immunity to ambient light ensures consistent detection, even under fluorescent or natural light.Specifications: Parameter Details Model Number PX-24ES Sensing Method Through-beam Sensing Distance Up to 5 meters Light Source Infrared LED Response Time 1 ms Output Type NPN open-collector Power Supply 1224 V DC 10% Current Consumption 20 mA Protection Circuit Reverse polarity, surge, and short-circuit protection Operating Temperature -25C to +55C Enclosure Rating IP67 (water and dust resistant) Housing Material Polycarbonate Connection 2-meter cable Mounting Through-hole or surface mount Dimensions Approx. 11 x 20 x 32 mm
