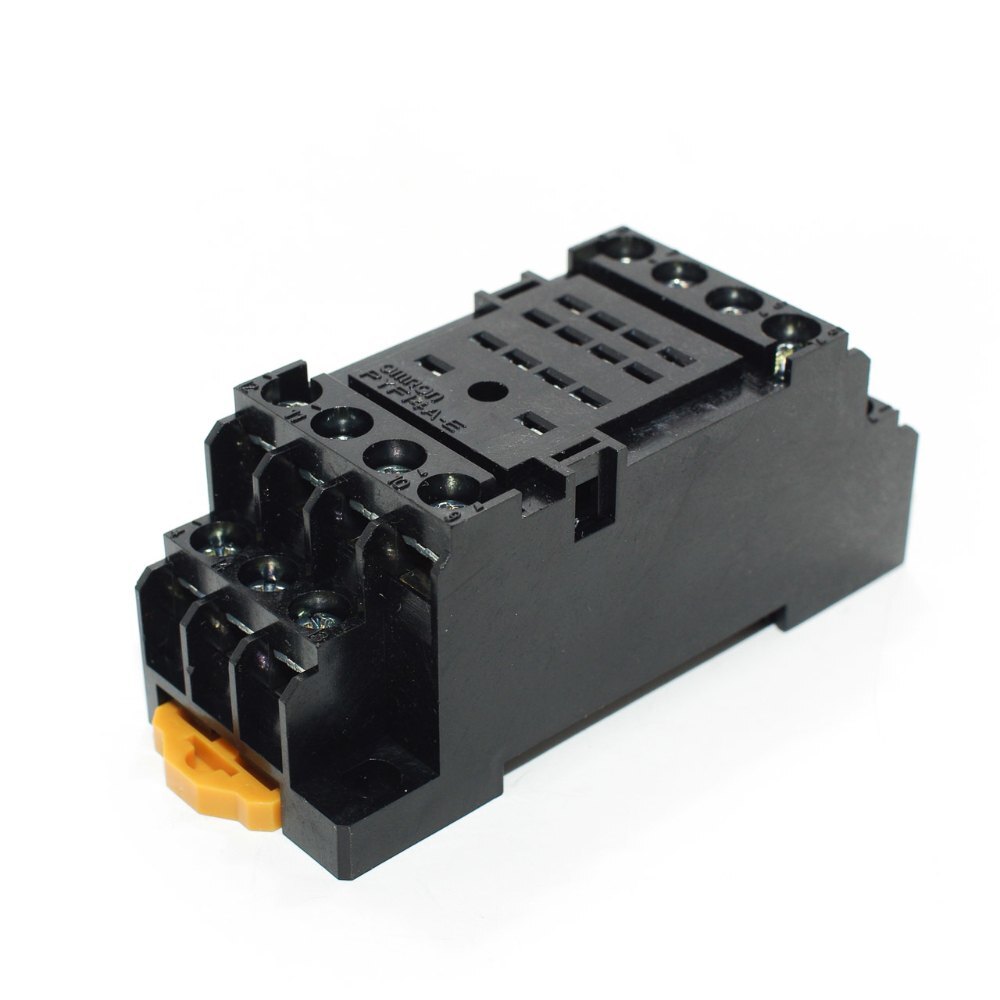

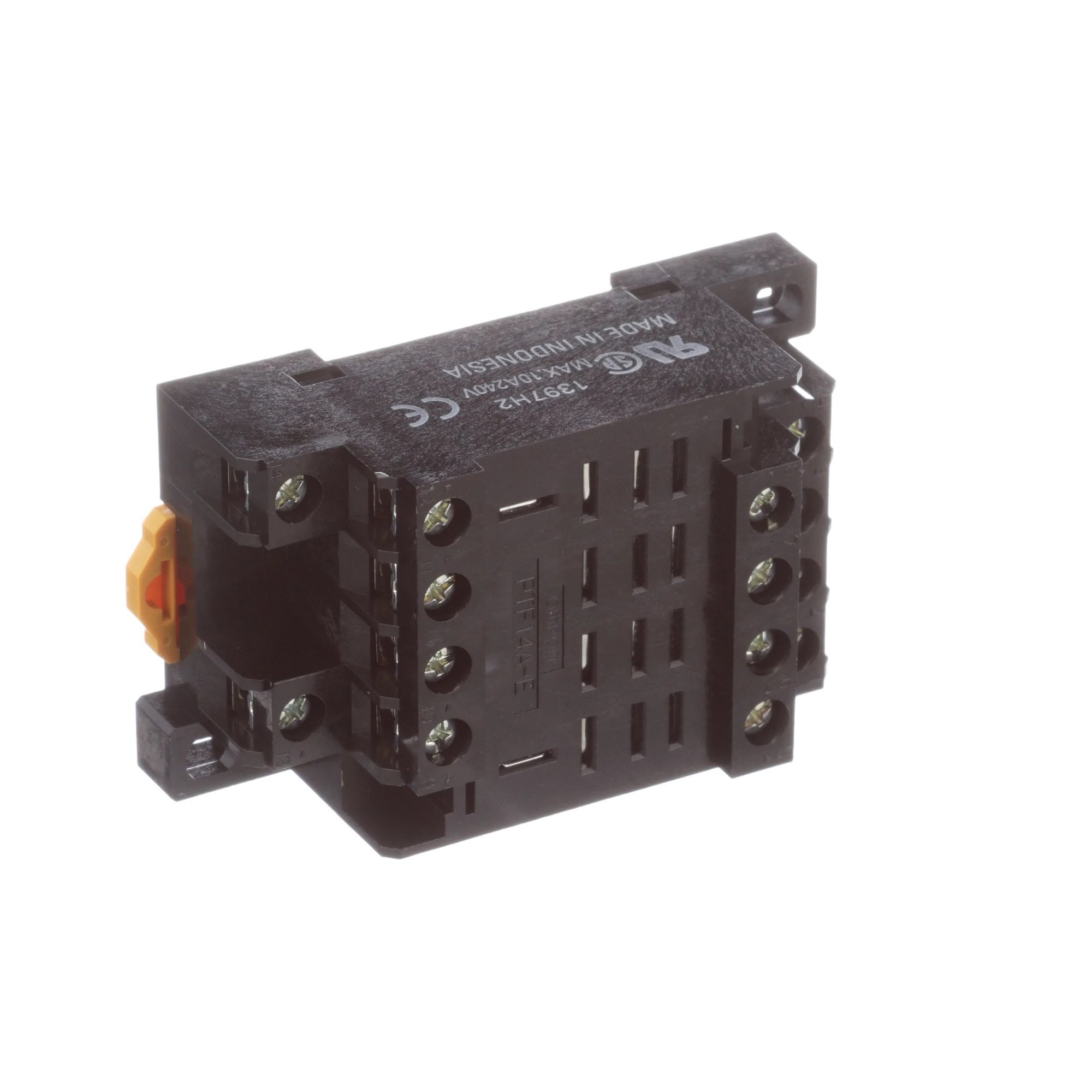

PTF14A-E Omron 14 pin Relay Base

317 INR/Piece

Get a Price/Quote

Product Details:

Contact Resistance Dependent on relay used
Coil Power Dependent on relay used
Protect Feature Finger safe construction
Working Temperature -30C to +60C
Contact Material Dependent on relay used
Mechanical Life Depend on attached relay
Coil Voltage Dependent on relay used
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PTF14A-E Omron 14 pin Relay Base Price And Quantity

Minimum Order Quantity 10 Piece
Price 317 INR/Piece

PTF14A-E Omron 14 pin Relay Base Product Specifications

Product Type Relay Base Socket
Contact Load Dependent on installed relay
Contact Material Dependent on relay used
Color Black
Theory Socketed base for electromagnetic relay
Coil Power Dependent on relay used
Terminal Type Screw terminal
Contact Resistance Dependent on relay used
Weight Approx. 65g
Working Temperature -30C to +60C
Protect Feature Finger safe construction
Usage Relay base for general purpose applications
Insulation Resistance 100 M min. at 500V DC
Power Consumption N/A (base only)
Dimension (L*W*H) Approx. 76 x 36 x 21 mm
Operate Time Depends on installed relay
Rated Voltage 250V AC max
Supply Terminal Screw terminals for wiring
Coil Voltage Dependent on relay used
Mechanical Life Depend on attached relay
Ambient Temperature -30C to +60C
Dielectiric Strength 2000V AC for 1 min
Contact Form Dependent on relay used
Size For 14 pin relays

Clamping Torque 0.78 Nm max
Pin Quantity 14
Suitable Relays MY4, MY4N, and compatible 14-pin relays
Wire Size Compatibility Max 2.5 mm²
Part Number PTF14A-E
Material Durable flame retardant plastic
Mounting Type Panel mounting with screws or DIN rail

PTF14A-E Omron 14 pin Relay Base Trade Information

Payment Terms Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 500 Piece Per Week
Delivery Time 1 Days
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Main Export Market(s) Asia
Main Domestic Market All India
Certifications YES

Product Description

Socket, DIN rail/surface mounting,14-pin, screw terminals, for LY-SERIES

Material	Plastic
Usage/Application	Control Panels
Model Name/Number	PTF14A-E
Number Of Poles	2 Pole
Voltage Type	DC

Reliable and Versatile Mounting

With options for panel mounting using screws or quick installation on a DIN rail, the PTF14A-E base fits diverse control panel or automation setups. Its robust design and flame-retardant housing enhance operational safety while simplifying future maintenance or relay replacement. The compact profile helps optimize enclosure space without compromising functionality.

Compatibility With 14-Pin Relays

The relay base supports 14-pin Omron MY4, MY4N, and compatible relay modules, making it a versatile solution for many general purpose applications. Its universal socket design allows seamless integration into existing systems or easy equipment upgrades. The strong terminal clamping (up to 0.78 Nm) guarantees reliable connections throughout the rated lifecycle.

Enhanced Safety and Durability

Engineered with a finger-safe construction and durable plastic, the PTF14A-E provides superior electrical insulation and user protection. It withstands ambient temperatures from -30C to +60C and features high dielectric strength (2000V AC for 1 minute), reinforcing its performance in challenging industrial or commercial environments.

FAQ's of PTF14A-E Omron 14 pin Relay Base:

Q: How do I mount the PTF14A-E Omron 14-pin relay base?

A: You can mount the PTF14A-E relay base either by using screws for panel mounting or by attaching it to a DIN rail, giving you flexibility based on your setup requirements.

Q: What types of relays are compatible with this base?

A: The PTF14A-E is designed for use with Omron MY4, MY4N, and other standard 14-pin relays, ensuring broad compatibility for various control applications.

Q: What wire sizes are supported by the screw terminals?

A: The screw terminals of the PTF14A-E can handle wiring with a maximum cross-sectional area of 2.5 mm2, facilitating secure and efficient connections.

Q: Where can the PTF14A-E relay base be installed?

A: This base is ideal for installation in electrical control panels, automation boards, or industrial enclosures and is suitable for distributor, exporter, supplier, and trader applications.

Q: What are the safety features of the PTF14A-E relay base?

A: The relay base is constructed with flame-retardant plastic and incorporates finger-safe protection to minimize the risk of electrical contact during operation or maintenance.

Q: What is the benefit of using a socketed relay base like the PTF14A-E?

A: Using a socketed base enables quick and easy replacement of relays without rewiring, reducing downtime and simplifying maintenance processes.
